ABSU Solar Water

TO PROVIDE CLEAN AND SAFE
WATER TO PEOPLE
WHO LIVE WITHOUT IT.

WHO WE ARE

ABSU WATER is a Polish company based in Warsaw, Poland. We present a proven approach, visionary engineering and years of experience in water treatment research.

ABSU SOLAR WATER SYSTEM sets its own goal, to solve the problem with unhealthy drinking water – water has to be accessible, affordable and healthy, as a right for everyone all over the world.

Our manufacturing factory is located near Warsaw, Poland and is managed by GERDA Group, a long time expert in a broad range of top quality products.

TO PROVIDE CLEAN AND SAFE WATER TO PEOPLE WHO LIVE WITHOUT IT.

ABSU WATER has developed CLEANWATERbox - an economic water treatment unit that converts raw water into safe drinking water, free of disease-causing germs and contaminants.

Case Study

Clean drinking water is a basic human  need and a human right!

1 BILLION PEOPLE

do not have access to a clean, healthy water.

Women and children have to walk up to 3 hours a day to get water from swamps, ponds or rivers, which are contaminated with pollutants (such as animal feces) and pathogens. According to the World Health Organisation (WHO) statistics, more than 5,000 people die each day from drinking contaminated water.

APPLICATIONS

CLEANWATERbox is perfect and sustainable for small communities, schools, hospitals, rural areas, refugee camps and other remote areas. Due to its effective water treatment system, the CLEANWATERbox can be applied to many raw water sources like ground water, wells, surface water, water cisterns, rain water collection and city water supply.

SCHOOLSSCHOOLS
HOSPITALSHOSPITALS
RESORTSRESORTS
RURAL AREASRURAL AREAS
REMOTE PLACESREMOTE PLACES

CLEANWATERbox 4.0

CLEANWATERbox 4.0 is the most effective and economical water treatment unit that converts contaminated water into safe drinking water, free of pollutants and disease causing germs.

Certified by the University of Bonn, Germany, Institute for Hygiene and Public Health. WHO Collaborating Center for Health Promoting Water Management & Communication.

Waterbox 4.0

PRODUCT REVIEW

<p>Designed for all regions - rural, remote and without infrastructure. </p>

Designed for all regions - rural, remote and without infrastructure.

<p>Equipped with a battery for high performance water supply even if the sun is not out.</p>

Equipped with a battery for high performance water supply even if the sun is not out.

<p>Easy to maintain and service. Replacement of spare parts is very easy. </p>

Easy to maintain and service. Replacement of spare parts is very easy.

<p>Filters over 5,000 liters water per day.</p>

Filters over 5,000 liters water per day.

<p>All processes are automatically monitored and controlled with a technologically advanced CONTROL UNIT.</p>

All processes are automatically monitored and controlled with a technologically advanced CONTROL UNIT.

<p>7 different filters and UVC lamp eliminate contaminants and pollutants from raw water.</p>

7 different filters and UVC lamp eliminate contaminants and pollutants from raw water.

<p>Works with 100% solar power. </p>

Works with 100% solar power.

<p>Basic operation is very simple: ON/OFF switch!</p>

Basic operation is very simple: ON/OFF switch!

<p>The disinfection unit with UVC lamp eliminates pathogenic germs, bacteria and viruses from the water.</p>

The disinfection unit with UVC lamp eliminates pathogenic germs, bacteria and viruses from the water.

<p>All plugs and cables are designed for easy setup and maintenance. </p>

All plugs and cables are designed for easy setup and maintenance.

SAFETY MEASURES

All materials used in the Waterbox 4.0 are waterproof and certified in accordance with DIN, DVGW and WHO guidelines.

The CLEANWATERbox 4.0 eliminates all contaminants without using a chemicals.

The filtration process does not remove minerals from the water that humans need!

TECHNICAL SPECIFICATIONS

PERFORMANCE Over 5,000 L/Day
DIMENSIONS 117 x 38 x 75 cm
WEIGHT 80 kg
CASING ALUMINIUM with anti-corrosion coating
RAW WATER INPUT 1/2 inch
DRINKING WATER OUTPUT 3/4 inch
Waterbox 4.0
Waterbox 4.0

BRIEF REVIEW

Waterbox 4.0
  1. DRINKING WATER OUTPUT
  2. INLET VALVE
  3. FILTER NO. 1
  4. WATERPUMP
  5. FILTER NO. 2
  6. FILTER NO. 3
  7. FILTER NO. 4
  8. FILTER NO. 5
  9. FILTER NO. 6
  10. WATER METER
  11. WATER METER
  12. WATER UVC DISINFECTION UNIT
  13. OUTPUTVALVE
  14. RAWWATER INPUT
  15. CONTROLUNIT
  16. BATTERY
  17. EXTERNAL POWER
    SUPPLY CHARGER
Waterbox 4.0

WATER TREATMENT PROCESS

CLEANWATERbox 4.0 – the filtration and disinfection system treats over 5,000 liters per day. The raw water is first pumped through a multi-stage filtration system to remove dirt and other impurities. The system has 7 filtration elements (which includes mesh screens, polypropylene cords, activated carbon and microbiological cartridge) and disinfection treatment with UVC lamp on the top of that.

SOLARPOWER SYSTEM

CLEANWATERbox 4.0 is grid independent and works on 100% solar energy. The energy generated from the solar panels provides enough electricity to run the unit during the day whilst simultaneously charging the battery pack to run the unit after sunset.

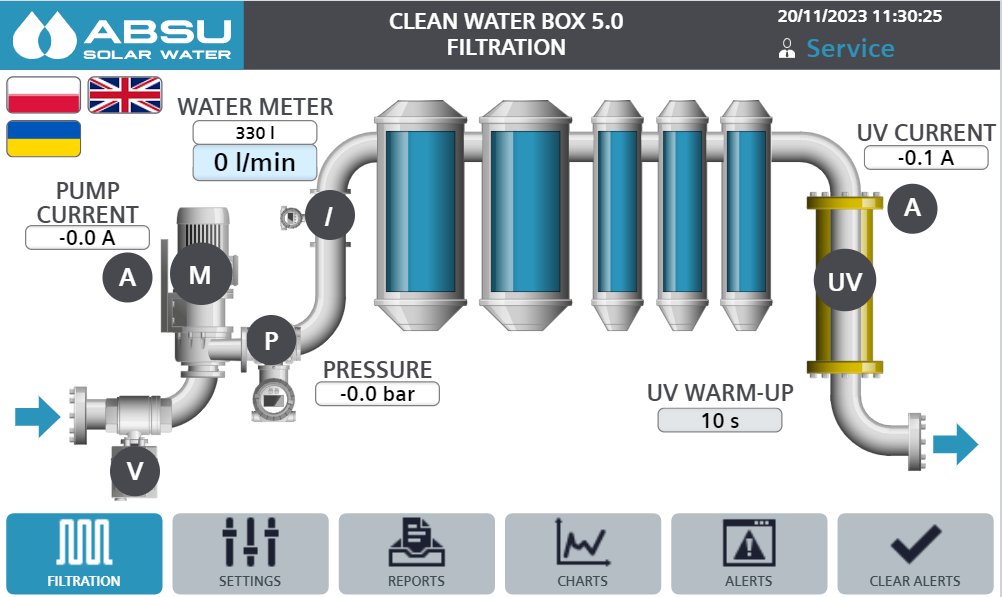

INTELLIGENT CONTROL UNIT

GPS and GSM

It is possible to control the location of the CLEANWATERbox 4.0 via GPS module.

The GSM module provides a complete report of the CLEANWATERbox 4.0, its performance and the status of the operation, parts, maintenance and water filtration.



  • 7- inch touch screen.
  • High-performance computer-based technology.
  • Manages the performance of all major WATERBOX 4.0 components, which includes solar panels, battery, pump, UVC disinfection unit, water meter and filters condition.
  • Counts and records water filtration and device operation time.
  • Monitors the work of technicians in the field of periodic service and maintenance.
  • Provides USB port that allows to charge compatible devices.

CONTROL UNIT

CONTROLLED PARAMETERS

  • GEOGRAPHICAL LOCATION VIA GPS
  • GSM / INTERNET ACCESS TO WATERBOX 4.0
  • SOLAR PANELS CONTROL
  • BATTERY CONTROL
  • SERVICE AND MAINTENANCE
  • ON-LINE DATA TRANSMISSION
  • PERFORMANCE MONITORING

MONITORING AND SURVEILLANCE SYSTEM
